Unpacking Zig's Standard Library Documentation

Do you know that you can read the Zig standard library documentation locally? With Zig 0.14.0, you can simply run the command

zig std

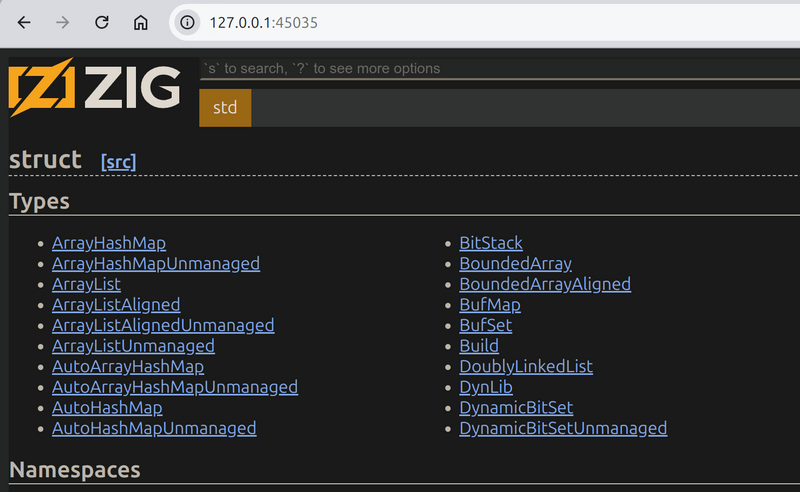

It will generate the documentation on the fly, run local server and open your browser on an address like 127.0.0.1:39985/ . Then you can stop that server by pressing Ctrl-C in a terminal, but the browser will already have cached all the necessary files, allowing you to continue browsing.

Let's take a closer look at how it works.

To run a web server Zig compiles ${zig_dir}/lib/compiler/std-docs.zig and saves the resulting executable as std whithin the ~/.cache/zig/ directory. Then, it executes this std executable, providing it with 3 parameters: the library folder, the path to the Zig executable itself, and the path to the cache directory.

zig_dir=/home/oleg/.zig/zig-linux-x86_64-0.14.0
~/.cache/zig/${long_hash}/std  ${zig_dir}/lib  ${zig_dir}/zig
 ~/.cache/zig

You can determine your zig_dir by running the command:

zig env

What happens when the browser window opens? std sends the browser the static index.html and main.js files from lib/docs, as well as the compiled WASM library from lib/docs/wasm/. It also assembles the .zig files from the lib/std folder and sends them as a source.tar archive. The main.wasm library parses files form the archive and helps rendering source code. This technique eliminates the need for separate JavaScript files for source code highlighting and precompiled .html files for the documentation. It reduces the size of the Zig installation.

If you refresh the page, std will check if the library files have changed by comparing their checksums in the cache. If they have not changed, it resends the source.tar; otherwise, it recreates the archive and sends the new version.

Now, let's reproduce this process in a separate directory.

mkdir doc_test
cd doc_test
cp -v ${zig_dir}/lib/compiler/std-docs.zig .
cp -r ${zig_dir}/lib lib
mkdir cache
zig build-exe std-docs.zig
./std-docs ./lib ${zig_dir}/zig ./cache

I hope this has given you a better understanding of the changes Andrew Kelley made to the Zig Autodoc system.
