Zig is now also a Windows resource compiler

This is a republication of this blog post

As of a few weeks ago, a cross-platform Windows resource compiler called resinator that I've been working on has been merged into the Zig compiler. This means that the latest master version of Zig can now compile (and cross-compile) Windows resource-definition script (.rc) files for you and link the resulting .res into your program. In addition, the PE/COFF resource table is also used for embedded .manifest files, so Zig now has support for those as well.

If you have no idea what a .rc or .manifest file is, don't worry! The next section should get you up to speed.

Note: I gave a talk about resinator a little while back if you're interested in some details about its development (apologies for the poor audio)

Use case: an existing C program

To give you an idea of what's possible with this new capability, let's take an existing Windows GUI program written in C and compile it using Zig. I've chosen Rufus for this purpose for a few reasons:

  • It is a self-contained, straightforward C program with no external dependencies
  • It relies on both its .rc and .manifest file for a hefty chunk of its functionality

The first (and really only) step is to write a build.zig file using the existing MinGW/Visual Studio build files as a reference, which I've done in a fork here.

Note: a few workarounds were needed to get things working with the clang compiler (which Zig uses under-the-hood for compiling C).

However, before we jump into compiling it, let's first try compiling without using the .rc and .manifest files by commenting out a few lines of the build.zig:

    const exe = b.addExecutable(.{
        .name = "rufus",
        .target = target,
        .optimize = optimize,
        .link_libc = true,
        // .win32_manifest = .{ .path = "src/rufus.manifest" },
    // exe.addWin32ResourceFile(.{
    //     .file = .{ .path = "src/rufus.rc" },
    //     .flags = &.{ "/D_UNICODE", "/DUNICODE" },
    // });
Enter fullscreen mode Exit fullscreen mode

Then, to compile it (assuming we're on Windows; we'll handle compiling on non-Windows hosts later):

zig build
Enter fullscreen mode Exit fullscreen mode

But when we try to run it:

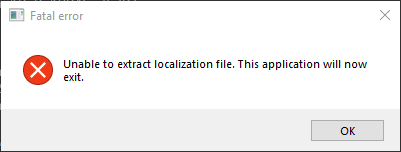

Rufus compiled without the .rc/.manifest fails to load

It turns out that Rufus embeds all of its localization strings as a resource via the rufus.rc file here:

IDR_LC_RUFUS_LOC    RCDATA      "../res/loc/embedded.loc"
Enter fullscreen mode Exit fullscreen mode

Note: A Windows resource-definition file (.rc) is made up of both C/C++ preprocessor directives and resource definitions. Resource definitions typically look something like <id> <type> <filepath> or <id> <type> BEGIN <...> END.

Instead of restoring the entire .rc file at once, though, let's start building the .rc file back up piece-by-piece as needed to get a sense of everything the .rc file is being used for. To fix this particular error, we can start with this in rufus.rc:

// this include is needed to #define IDR_LC_RUFUS_LOC
#include "resource.h"

IDR_LC_RUFUS_LOC    RCDATA      "../res/loc/embedded.loc"
Enter fullscreen mode Exit fullscreen mode

Note: This is adding a RCDATA resource with ID IDR_LC_RUFUS_LOC (which is set to the integer 500 via a #define in resource.h) that gets its data from the file ../res/loc/embedded.loc. The RCDATA resource is used to embed artibrary data into the executable (similar in purpose to Zig's @embedFile)--the contents of the embedded.loc file can then be loaded at runtime via FindResource/LoadResource.

With this .rc file and the exe.addWin32ResourceFile call uncommented in the build.zig file, we can build again, but when we try to run now we hit:

We'll deal with this properly later, but for now we can bypass this issue by right clicking on rufus.exe and choosing Run as administrator. When we do that, we then hit:

Still failing to load--this time we hit an assertion

This assertion failure is from Rufus failing to load a dialog template, since Rufus defines all of its dialogs in the .rc file and then loads them at runtime. Here's an example from the .rc file (this is the definition for the main window of Rufus):

IDD_DIALOG DIALOGEX 12, 12, 232, 326
CAPTION "Rufus 4.3.2089"
FONT 9, "Segoe UI Symbol", 400, 0, 0x0
    LTEXT           "Drive Properties",IDS_DRIVE_PROPERTIES_TXT,8,6,53,12,NOT WS_GROUP
    LTEXT           "Device",IDS_DEVICE_TXT,8,21,216,8
    PUSHBUTTON      "...",IDC_SAVE,210,30,14,12,BS_FLAT | NOT WS_VISIBLE
    // ... (truncated) ...
Enter fullscreen mode Exit fullscreen mode

So let's add back in all the DIALOGEX resource definitions and some necessary preprocessor directives to the .rc file and rebuild:

// Necessary for constants like DS_MODALFRAME, WS_VISIBLE, etc
#include "windows.h"
#ifndef IDC_STATIC
#define IDC_STATIC -1

// <all the DIALOGEX resource definitions>
Enter fullscreen mode Exit fullscreen mode

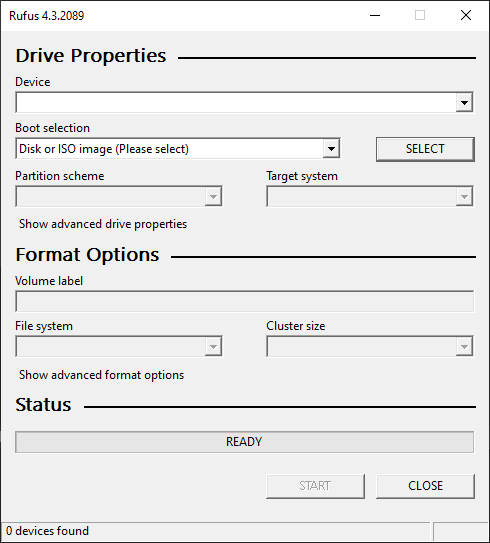

Now when we run it:

It loads!

But things still aren't quite right--at the very least, it's missing the application icon in the title bar. Here's the relevant part of the .rc file:

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_ICON                ICON                    "../res/rufus.ico"
Enter fullscreen mode Exit fullscreen mode

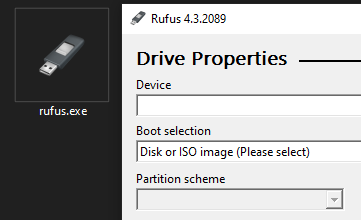

Adding that back into the .rc file, it starts looking a bit more like it should:

The icon shows both in the explorer and in the title bar

The rest of the .rc file doesn't affect things in an immediately apparent way, so let's speed through it:

  • A VERSIONINFO resource that provides information that then shows up in the Properties window for the executable
  • Some RCDATA resources for .png button icons
  • Some RCDATA resources for different .SYS, .img, etc. files that Rufus needs for writing bootable media
  • An RCDATA resource that is actually an .exe file that Rufus loads and executes at runtime to get better console behavior (see this subdirectory for the details)

So now we can restore the full rufus.rc file and move on to the rufus.manifest file.

Note: A .manifest file is an XML file that can be embedded into an executable as a special resource type (it is embedded as a string of XML; there's no conversion to a binary format). Windows then reads the embedded XML and modifies certain attributes of the executable as needed.

First, let's get back to this problem that we bypassed earlier:

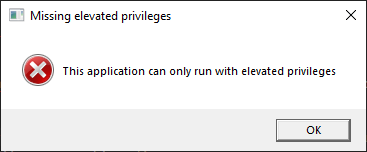

Rufus requires being run as administrator

This is something that the .manifest file handles for us. In particular:

  <trustInfo xmlns="urn:schemas-microsoft-com:asm.v3">
Enter fullscreen mode Exit fullscreen mode

This will make Windows aware that the program must be run as administrator, and it'll get this little icon overlayed on it in the file explorer:

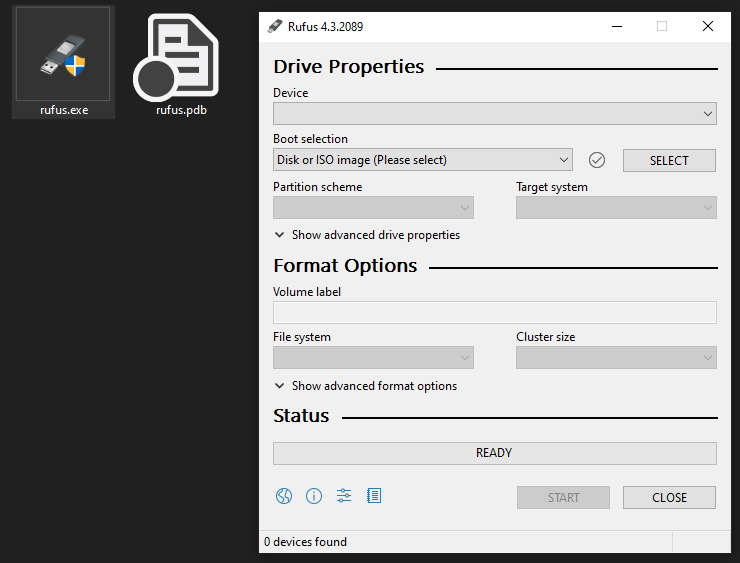

Now when we run it, it'll always try to run with administrator privileges.

Next, I mentioned previously that things still didn't look quite right. That's because the .manifest file is also used to set the "version" of the common controls that should be used (e.g. the style of things like buttons, dropdowns, etc). Rufus uses version of the common controls:

Enter fullscreen mode Exit fullscreen mode

When this is included in the .manifest, everything starts looking as it should (and the .png icons for buttons that were in the .rc file actually show up now):

(above) Rufus with the default common controls...

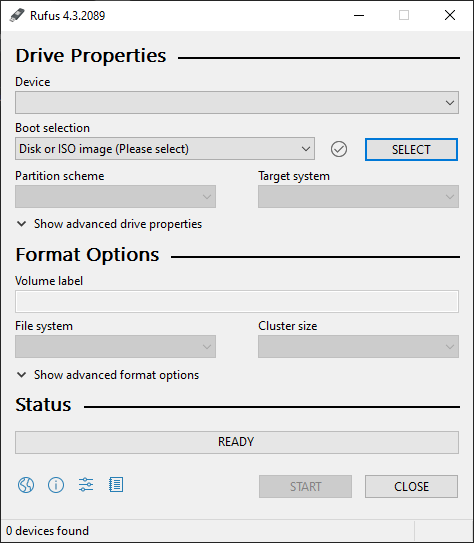

...and with common controls

There's a few more things that Rufus uses the .manifest file for that I won't go into detail on:

Finally, we can restore the full .manifest file and compile the complete program.

zig build
Enter fullscreen mode Exit fullscreen mode

Using our Zig-compiled Rufus to write a bootable USB drive


This is all pretty cool, but since the default Windows target ABI is gnu (meaning MinGW) and we've gotten that to work when the host is Windows, we can now cross-compile Rufus from any host system that Zig supports. This means that with only a Zig installation (and nothing else; Zig itself has no external dependencies), we get cross-compilation for free (just need to specify the target):

$ uname

$ git clone https://github.com/squeek502/rufus

$ cd rufus

$ zig build -Dtarget=x86_64-windows-gnu

$ ls zig-out/bin
rufus.exe  rufus.pdb
Enter fullscreen mode Exit fullscreen mode

(above) Cross-compiling Rufus from Linux...

...and running it on Windows

A summary

To recap, here's the list of the consequential things that Rufus relies on its .rc/.manifest files for:

  • The layout and style of every dialog in the program (e.g. every button, label, dropdown, etc)
  • Localized strings for 30+ different languages
  • Icons both for the executable itself and for buttons in its GUI
  • Ensuring that the program is run as administrator

and Zig is now capable of compiling (and cross-compiling) programs with these requirements.

Use case: a Zig project

A while back I wrote a Windows shell extension in Zig to mark files as 'watched' in the file explorer. It compiles into a .dll with exactly 1 embedded resource: an icon that gets overlayed on the files that have been marked as 'watched.' The .rc file is incredibly simple:

1 ICON "watched.ico"
Enter fullscreen mode Exit fullscreen mode

Before, I had to compile the .rc file into a .res file using a separate resource compiler (rc.exe, windres, llvm-rc, or resinator), commit the .res file into the repository, and link it into the .dll like this:

watched.addObjectFile(.{ .path = "res/resource.res" });
Enter fullscreen mode Exit fullscreen mode

With Zig's new resource compiling capabilities, I can delete the .res file from the repository and instead go with:

watched.addWin32ResourceFile(.{ .file = .{ .path = "res/resource.rc" } });
Enter fullscreen mode Exit fullscreen mode

(here's the commit where this change was made)

Some benefits of this:

  • No longer have a binary .res file committed to the repository
  • No dependency on an external resource compiler when making changes to the resource file
  • .rc compilation fully integrates with the Zig cache system, meaning that if the .rc file or any of its dependencies changes (e.g #included files or files that are referenced by resource definitions), then the .res will be recompiled (and otherwise it'll use the cached .res)

The details: How do you use resource files in Zig?

First, it must be noted that UTF-16 encoded .rc files are not supported, since the clang preprocessor does not support UTF-16 encoded files. Unfortunately, UTF-16 encoded .rc files are fairly common, as Visual Studio generates them. Support for UTF-16 files in resinator would likely involve a custom preprocessor, so it's still quite a way off.

Note: If you encounter a UTF-16 encoded .rc file, you have a few options to deal with it:

  • If the file contains only characters within the Windows-1252 range, then converting the file to Windows-1252 would be the way to go, since Windows-1252 is the default code page when compiling .rc files.
  • If the file contains characters outside the Windows-1252 range, then the file can be converted to UTF-8 and the flag /c65001 or the preprocessor directive #pragma code_page(65001) can be used (65001 is the code page for UTF-8).

With that out of the way, there are two interfaces to resinator in the Zig compiler:

Via zig build-exe, build.zig, etc

In the simplest form, you can just give the path to the .rc file via the command line like any other source file:

zig build-exe main.zig my_resource_file.rc
Enter fullscreen mode Exit fullscreen mode

Note: If cross-compiling, then -target would need to be specified, e.g. -target x86_64-windows-gnu

the equivalent in build.zig would be:

exe.addWin32ResourceFile(.{ .file = .{ .path = "my_resource_file.rc" } });
Enter fullscreen mode Exit fullscreen mode

If you need to pass rc.exe-like flags, -rcflags <flags> -- can be used before the .rc file like so:

zig build-exe main.zig -rcflags /c65001 -- my_resource_file.rc
Enter fullscreen mode Exit fullscreen mode

the equivalent in build.zig would be:

    .file = .{ .path = "my_resource_file.rc" },
    // Anything that rc.exe accepts will work here
    // https://learn.microsoft.com/en-us/windows/win32/menurc/using-rc-the-rc-command-line-
    // This sets the default code page to UTF-8
    .flags = &.{"/c65001"},
Enter fullscreen mode Exit fullscreen mode

By default, zig will try to use the most appropriate system headers available (independent of the target ABI). On Windows, it will always try to use MSVC/Windows SDK include paths if they exist, and fall back to the MinGW headers bundled with Zig if not. On non-Windows, it will always use the MinGW header include paths. The intention with this is to make most .rc files work by default whenever possible, since the MSVC includes have some .rc-related include files that MinGW does not.

If the default header include behavior is unwanted, the -rcincludes option can be used:

zig build-exe main.zig my_resource_file.rc -rcincludes=none
Enter fullscreen mode Exit fullscreen mode

the equivalent in build.zig would be:

exe.rc_includes = .none;
Enter fullscreen mode Exit fullscreen mode

The possible values are any (this is the default), msvc (always use MSVC, no fall back), gnu (always use MinGW), or none (no system include paths provided automatically).

Note: If the target object file is not coff, then specifying a .rc or .res file on the command line is an error:

$ zig build-exe main.zig zig.rc -target x86_64-linux-gnu
error: rc files are not allowed unless the target object format is coff (Windows/UEFI)
Enter fullscreen mode Exit fullscreen mode

But std.Build.Compile.Step.addWin32ResourceFile can be used regardless of the target, and if the target object format is not COFF, then the resource file will just be ignored.

.manifest files

Similar to .rc files, .manifest files can be passed via the command line like so:

zig build-exe main.zig main.manifest
Enter fullscreen mode Exit fullscreen mode

(on the command line, specifying a .manifest file when the target object format is not COFF is an error)

Note: Windows manifest files must have the extension .manifest; the extension .xml is not accepted.

or in build.zig:

const exe = b.addExecutable(.{
    .name = "manifest-test",
    .root_source_file = .{ .path = "main.zig" },
    .target = target,
    .optimize = optimize,
    .win32_manifest = .{ .path = "main.manifest" },
Enter fullscreen mode Exit fullscreen mode

(in build.zig, the manifest file is ignored if the target object format is not COFF)

Note: Currently, only one manifest file can be specified per compilation. This is because the ID of the manifest resource is currently always 1 (CREATEPROCESS_MANIFEST_RESOURCE_ID). Specifying multiple manifests could be supported if a way for the user to specify an ID for each manifest is added (manifest IDs must be a u16). I'm not yet familiar enough with manifests to know what the use case for multiple manifests is.

Via zig rc

Similar to how zig cc is a drop-in replacement for a C/C++ compiler, zig rc is a (cross-platform) drop-in replacement for rc.exe. It is functionally identical to standalone resinator, but without the dependency on an external preprocessor.

Here's the usage/help text (note that - and -- are also accepted option prefixes in addition to /):

$ zig rc /?
Usage: zig rc [options] [--] <INPUT> [<OUTPUT>]

The sequence -- can be used to signify when to stop parsing options.
This is necessary when the input path begins with a forward slash.

Supported Win32 RC Options:
  /?, /h                  Print this help and exit.
  /v                      Verbose (print progress messages).
  /d <name>[=<value>]     Define a symbol (during preprocessing).
  /u <name>               Undefine a symbol (during preprocessing).
  /fo <value>             Specify output file path.
  /l <value>              Set default language using hexadecimal id (ex: 409).
  /ln <value>             Set default language using language name (ex: en-us).
  /i <value>              Add an include path.
  /x                      Ignore INCLUDE environment variable.
  /c <value>              Set default code page (ex: 65001).
  /w                      Warn on invalid code page in .rc (instead of error).
  /y                      Suppress warnings for duplicate control IDs.
  /n                      Null-terminate all strings in string tables.
  /sl <value>             Specify string literal length limit in percentage (1-100)
                          where 100 corresponds to a limit of 8192. If the /sl
                          option is not specified, the default limit is 4097.
  /p                      Only run the preprocessor and output a .rcpp file.

No-op Win32 RC Options:
  /nologo, /a, /r         Options that are recognized but do nothing.

Unsupported Win32 RC Options:
  /fm, /q, /g, /gn, /g1, /g2     Unsupported MUI-related options.
  /?c, /hc, /t, /tp:<prefix>,    Unsupported LCX/LCE-related options.
     /tn, /tm, /tc, /tw, /te,
                    /ti, /ta
  /z                             Unsupported font-substitution-related option.
  /s                             Unsupported HWB-related option.

Custom Options (resinator-specific):
  /:no-preprocess           Do not run the preprocessor.
  /:debug                   Output the preprocessed .rc file and the parsed AST.
  /:auto-includes <value>   Set the automatic include path detection behavior.
    any                     (default) Use MSVC if available, fall back to MinGW
    msvc                    Use MSVC include paths (must be present on the system)
    gnu                     Use MinGW include paths (requires Zig as the preprocessor)
    none                    Do not use any autodetected include paths

Note: For compatibility reasons, all custom options start with :
Enter fullscreen mode Exit fullscreen mode

To give you an idea of how compatible zig rc is with rc.exe, I wrote a set of scripts that tests resource compilers using the .rc files in Microsoft's Windows-classic-samples repository. For each .rc file, it compiles it once with rc.exe (the 'canonical' implementation), and once with each resource compiler under test. Any differences in the .res output are considered a 'discrepancy' and we get a summary of all the found discrepancies at the end.

Here are the results:

Processed 460 .rc files

  zig rc

460 .rc files processed without discrepancies
identical .res outputs:     460

Enter fullscreen mode Exit fullscreen mode

That is, zig rc compiles every .rc file into a byte-for-byte identical .res file when compared to rc.exe (see the README for windres and llvm-rc results).

Note: This byte-for-byte compatibility also holds when compiling .rc files via zig build-exe, zig build, etc

Diving deeper: How does it work under-the-hood?

For .rc files, there is a four step process:

  1. The CLI flags are parsed by resinator. If there are any invalid flags it'll error and fail the compilation
  2. The .rc file is run through the clang preprocessor and turned into an intermediate .rcpp file
  3. The .rcpp file is compiled by resinator and turned into a .res file
  4. The .res file is added to the list of link objects and linked into the final binary by the linker

For .manifest files, the process is similar but there's a generated .rc file involved:

  1. A .rc file is generated with the contents 1 24 "path-to-manifest.manifest" (1 is CREATEPROCESS_MANIFEST_RESOURCE_ID which is the default ID for embedded manifests, and 24 is RT_MANIFEST--there's no recognized keyword for the RT_MANIFEST resource type so the integer value must be used instead)
  2. That generated .rc file is compiled into a .res file (no need for flags/preprocessing)
  3. The .res file is linked into the final binary

Wrapping up

I believe that Zig now has the most rc.exe-compatible cross-platform Windows resource compiler implementation out there. With Zig's already powerful zig cc and cross-compilation abilities, this should unlock even more use-cases for Zig--both as a language and as a toolchain.

Top comments (2)

kristoff profile image
Loris Cro

Thanks for sharing, you can also set this post as a re-post in the metadata, this will add an extra line at the top of the page and istruct RSS readers where to find the original version (I think)

squeek502 profile image
Ryan Liptak

Thanks for the heads up, went ahead and set that.
